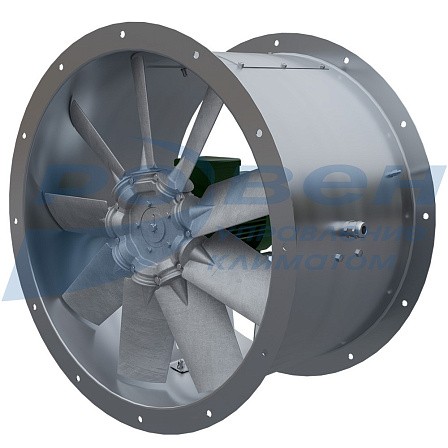

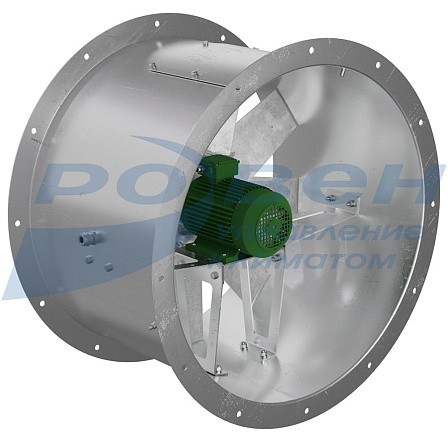

Вентилятор осевой РОСА-Ex
Монтажная опора (МОП) является дополнительным элементом и в комплект поставки не входит.
Описание
- Взрывозащищенные осевые вентиляторы
- Предназначены для применения в потенциально взрывоопасной газовой среде категорий IIА, IIВ, IIС (кроме взрывоопасных смесей с воздухом: коксового газа категории IIВ группы Т1; окиси пропилена, окиси этилена, формальдегида, этилтрихлорэтилена, этилена категории IIВ группы Т2; винилтрихлорсилена, этилхлорсилена категории IIB группы Т3)
Конструктив
- Направление потока: IW (по умолчанию) - от колеса на двигатель, MW - от двигателя на колесо
- Типы корпуса: 10, 20, 30
- Исполнения:
- Ех2 – материал корпуса и лопаток - алюминиевый сплав
Двигатель
- Взрывозащищенный трехфазный асинхронный электродвигатель
- Степень защиты электродвигателя не ниже IP 54
Условия эксплуатации
- Климатическое исполнение по ГОСТ 15150-69: У1 или У2 (для эксплуатации на открытом воздухе или под навесом)
- Температура окружающей среды от -45°С до +40°С
- Температура перемещаемой среды от -45°С до +40°С
- Перемещаемая среда не должна содержать:
- взрывоопасных веществ под избыточным давлением или нагревающихся выше температуры их самовоспламенения;
- пары и газы, вызывающие ускоренную коррозию материалов и покрытий указанных исполнений.
Для изделий из алюминиевых сплавов (Ex2) не допускается контакт с окислами железа.
Дополнительная комплектация
1 - Вставка гибкая ВГК-РОСА
2 - Входной коллектор осевой ВКО-РОСА
3 - Переходник РОСА
4 - Козырек РОСА
5 - Решетка защитная БАСКЕТ-РОСА
6 - Монтажная опора МОП
7 - Виброизоляторы
* Дополнительные комплектующие в комплект поставки не входят.

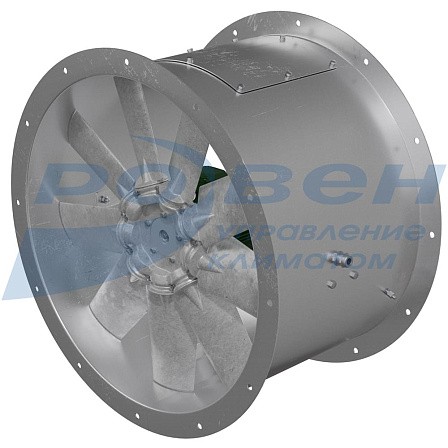

Типы корпусов вентиляторов
Полная информация о вентиляторах РОСА-Ex в электронном pdf-каталоге по ссылке во вкладке "Характеристики".
Габаритные и присоединительные размеры вентиляторов РОСА-Ex с типом корпуса 10
|
№ вент. |
Наименование |
L, мм |
D, мм |
D1, мм |
D2, мм |
m, отв |
|
4,0 |
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/18-0,25/1500/220-380/0-У2 |
440 |
400 |
436 |
460 |
8 |
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/22-0,37/1500/220-380/0-У2 |
440 |
400 |
436 |
460 |
8 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/73-0,55/3000/220-380/0-У2 |
440 |
400 |
436 |
460 |
8 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/77-0,75/3000/220-380/0-У2 |
440 |
400 |
436 |
460 |
8 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/81-1,1/3000/220-380/0-У2 |
440 |
400 |
436 |
460 |
8 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/13-1,5/3000/220-380/0-У2 |
440 |
400 |
436 |
460 |
8 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/17-2,2/3000/220-380/0-У2 |
440 |
400 |
436 |
460 |
8 |
|
|
4,5 |
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/46-0,25/1500/220-380/0-У2 |
440 |
450 |
486 |
510 |
8 |
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/18-0,37/1500/220-380/0-У2 |
440 |
450 |
486 |
510 |
8 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/70-0,55/1500/220-380/0-У2 |
440 |
450 |
486 |
510 |
8 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/73-0,75/3000/220-380/0-У2 |
440 |
450 |
486 |
510 |
8 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/77-1,1/3000/220-380/0-У2 |
440 |
450 |
486 |
510 |
8 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/37-1,5/3000/220-380/0-У2 |
440 |
450 |
486 |
510 |
8 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/85-2,2/3000/220-380/0-У2 |
440 |
450 |
486 |
510 |
8 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/61-3,0/3000/220-380/0-У2 |
515 |
450 |
486 |
510 |
8 |
|
|
5,0 |
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/38-0,25/1500/220-380/0-У2 |
440 |
500 |
536 |
560 |
12 |
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/14-0,37/1500/220-380/0-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/18-0,55/1500/220-380/0-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/25-0,75/3000/220-380/0-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/73-1,1/3000/220-380/0-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/77-1,5/3000/220-380/0-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/81-2,2/3000/220-380/0-У2 |
440 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/09-3,0/3000/220-380/0-У2 |
515 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/13-4,0/3000/220-380/0-У2 |
515 |
500 |
536 |
560 |
12 |
|
|
5,6 |
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/50-0,37/1500/220-380/0-У2 |
440 |
560 |
620 |
660 |
12 |
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/58-0,55/1500/220-380/0-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/62-0,75/1500/220-380/0-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/25-1,1/3000/220-380/0-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/73-1,5/3000/220-380/0-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/77-2,2/3000/220-380/0-У2 |
440 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/81-3,0/3000/220-380/0-У2 |
515 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/09-4,0/3000/220-380/0-У2 |
515 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/13-5,5/3000/220-380/0-У2 |
515 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/17-7,5/3000/220-380/0-У2 |
630 |
560 |
620 |
660 |
12 |
|
|
6,3 |
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/78-0,55/1500/220-380/0-У2 |
440 |
630 |
690 |
730 |
12 |
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/82-0,75/1500/220-380/0-У2 |
440 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/86-1,1/1500/220-380/0-У2 |
440 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/90-1,5/1500/220-380/0-У2 |
440 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/97-2,2/3000/220-380/0-У2 |
440 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/101-3,0/3000/220-380/0-У2 |
515 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/57-4,0/3000/220-380/0-У2 |
515 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/317-5,5/3000/220-380/0-У2 |
515 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/305-7,5/3000/220-380/0-У2 |
630 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/85-11,0/3000/380-660/0-У2 |
630 |
630 |
690 |
730 |
12 |
|
|
7,1 |
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/74-0,75/1500/220-380/0-У2 |
440 |
710 |
770 |
810 |
16 |
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/82-1,1/1500/220-380/0-У2 |
440 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/182-1,5/1500/220-380/0-У2 |
440 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/90-2,2/1500/220-380/0-У2 |
515 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/94-3,0/1500/220-380/0-У2 |
515 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/97-4,0/3000/220-380/0-У2 |
515 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/101-5,5/3000/220-380/0-У2 |
515 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/77-7,5/3000/220-380/0-У2 |
630 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/81-11,0/3000/380-660/0-У2 |
630 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/181-15,0/3000/380-660/0-У2 |
820 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/201-18,5/3000/380-660/0-У2 |
820 |
710 |
770 |
810 |
16 |
|
|
8,0 |
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/30-1,1/1500/220-380/0-У2 |
440 |
800 |
860 |
900 |
16 |
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/34-1,5/1500/220-380/0-У2 |
440 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/38-2,2/1500/220-380/0-У2 |
515 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/42-3,0/1500/220-380/0-У2 |
515 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/46-4,0/1500/220-380/0-У2 |
515 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/22-5,5/1500/220-380/0-У2 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/77-7,5/3000/220-380/0-У2 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/81-11,0/3000/380-660/0-У2 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/85-15,0/3000/380-660/0-У2 |
820 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/125-18,5/3000/380-660/0-У2 |
820 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/89-22,0/3000/380-660/0-У2 |
820 |
800 |
860 |
900 |
16 |
|
|
9,0 |
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/146-1,5/1500/220-380/0-У2 |
440 |
900 |
960 |
1035 |
16 |
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/150-2,2/1500/220-380/0-У2 |
515 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/410-3,0/1500/220-380/0-У2 |
515 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/414-4,0/1500/220-380/0-У2 |
515 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/158-5,5/1500/220-380/0-У2 |
630 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/162-7,5/1500/380-660/0-У2 |
630 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/22-11,0/1500/380-660/0-У2 |
630 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/401-15,0/3000/380-660/0-У2 |
820 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/177-18,5/3000/380-660/0-У2 |
820 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/405-22,0/3000/380-660/0-У2 |
820 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/185-30,0/3000/380-660/0-У2 |
820 |
900 |
960 |
1035 |
16 |
|
|
10,0 |
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/122-3,0/1500/220-380/0-У2 |
515 |
1000 |
1070 |
1135 |
16 |
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/126-4,0/1500/220-380/0-У2 |
515 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/130-5,5/1500/220-380/0-У2 |
630 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/134-7,5/1500/380-660/0-У2 |
630 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/142-11,0/1500/380-660/0-У2 |
630 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/86-15,0/1500/380-660/0-У2 |
820 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/90-18,5/1500/380-660/0-У2 |
820 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/94-22,0/1500/380-660/0-У2 |
820 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/230-30,0/1500/380-660/0-У2 |
820 |
1000 |
1070 |
1135 |
16 |
|
|
11,2 |
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/123-3,0/1000/220-380/0-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/127-4,0/1000/220-380/0-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/15-5,5/1000/380-660/0-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/30-7,5/1500/380-660/0-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/122-11,0/1500/380-660/0-У2 |
630 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/126-15,0/1500/380-660/0-У2 |
820 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/226-18,5/1500/380-660/0-У2 |
820 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/134-22,0/1500/380-660/0-У2 |
820 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/230-30,0/1500/380-660/0-У2 |
820 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/234-37,0/1500/380-660/0-У2 |
950 |
1120 |
1195 |
1255 |
16 |
|
|
12,5 |
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/55-3,0/1000/220-380/0-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/59-4,0/1000/220-380/0-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/63-5,5/1000/380-660/0-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/67-7,5/1000/380-660/0-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/02-11,0/1500/380-660/0-У2 |
630 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/30-15,0/1500/380-660/0-У2 |
820 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/06-18,5/1500/380-660/0-У2 |
820 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/82-22,0/1500/380-660/0-У2 |
820 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/86-30,0/1500/380-660/0-У2 |
820 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/14-37,0/1500/380-660/0-У2 |
950 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/18-45,0/1500/380-660/0-У2 |
950 |
1250 |
1320 |
1385 |
16 |
*Представленные типоразмеры распространяются на исполнения Ех1 и Ех2.
Габаритные и присоединительные размеры вентиляторов РОСА-Ex с типом корпуса 20
|
№ вент. |
Наименование |
L, мм |
D, мм |
D1, мм |
D2, мм |
m, отв |
D3, мм |
D4, мм |
D5, мм |
n, отв |
|
4,0 |
РОСА-Ex/20-4,0-Ex2/IIB-R3L/4,0/AL/18-0,25/1500/220-380 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
РОСА-Ex/20-4,0-Ex2/IIB-R3L/4,0/AL/22-0,37/1500/220-380 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/20-4,0-Ex2/IIB-R3L/4,0/AL/73-0,55/3000/220-380 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/20-4,0-Ex2/IIB-R3L/4,0/AL/77-0,75/3000/220-380 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/20-4,0-Ex2/IIB-R3L/4,0/AL/81-1,1/3000/220-380 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/20-4,0-Ex2/IIB-R3L/4,0/AL/13-1,5/3000/220-380 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/20-4,0-Ex2/IIB-R3L/4,0/AL/17-2,2/3000/220-380 |
540 |
400 |
436 |
460 |
8 |
500 |
536 |
560 |
12 |
|
|
4,5 |
РОСА-Ex/20-4,5-Ex2/IIB-R3L/4,5/AL/46-0,25/1500/220-380 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
РОСА-Ex/20-4,5-Ex2/IIB-R3L/4,5/AL/18-0,37/1500/220-380 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/20-4,5-Ex2/IIB-R3L/4,5/AL/70-0,55/1500/220-380 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/20-4,5-Ex2/IIB-R3L/4,5/AL/73-0,75/3000/220-380 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/20-4,5-Ex2/IIB-R3L/4,5/AL/77-1,1/3000/220-380 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/20-4,5-Ex2/IIB-R3L/4,5/AL/37-1,5/3000/220-380 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/20-4,5-Ex2/IIB-R3L/4,5/AL/85-2,2/3000/220-380 |
552,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/20-4,5-Ex2/IIB-R3L/4,5/AL/61-3,0/3000/220-380 |
627,5 |
450 |
486 |
510 |
8 |
560 |
620 |
660 |
12 |
|
|
5,0 |
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/38-0,25/1500/220-380 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/14-0,37/1500/220-380 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/18-0,55/1500/220-380 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/25-0,75/3000/220-380 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/73-1,1/3000/220-380 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/77-1,5/3000/220-380 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/81-2,2/3000/220-380 |
565 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/09-3,0/3000/220-380 |
640 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/20-5,0-Ex2/IIB-R3L/5,0/AL/13-4,0/3000/220-380 |
640 |
500 |
536 |
560 |
12 |
630 |
690 |
730 |
12 |
|
|
5,6 |
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/50-0,37/1500/220-380 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/58-0,55/1500/220-380 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/62-0,75/1500/220-380 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/25-1,1/3000/220-380 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/73-1,5/3000/220-380 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/77-2,2/3000/220-380 |
580 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/81-3,0/3000/220-380 |
655 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/09-4,0/3000/220-380 |
655 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/13-5,5/3000/220-380 |
655 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/20-5,6-Ex2/IIB-R3L/5,6/AL/17-7,5/3000/220-380 |
770 |
560 |
620 |
660 |
12 |
710 |
770 |
810 |
16 |
|
|
6,3 |
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/78-0,55/1500/220-380 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/82-0,75/1500/220-380 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/86-1,1/1500/220-380 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/90-1,5/1500/220-380 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/97-2,2/3000/220-380 |
597,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/101-3,0/3000/220-380 |
672,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/57-4,0/3000/220-380 |
672,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/317-5,5/3000/220-380 |
672,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/305-7,5/3000/220-380 |
787,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/20-6,3-Ex2/IIB-R4Z/6,3/AL/85-11,0/3000/380-660 |
787,5 |
630 |
690 |
730 |
12 |
800 |
860 |
900 |
16 |
|
|
7,1 |
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/74-0,75/1500/220-380 |
617,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/82-1,1/1500/220-380 |
617,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/182-1,5/1500/220-380 |
617,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/90-2,2/1500/220-380 |
692,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/94-3,0/1500/220-380 |
692,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/97-4,0/3000/220-380 |
692,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/101-5,5/3000/220-380 |
692,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/77-7,5/3000/220-380 |
807,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/81-11,0/3000/380-660 |
807,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/181-15,0/3000/380-660 |
997,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/20-7,1-Ex2/IIB-R4Z/7,1/AL/201-18,5/3000/380-660 |
997,5 |
710 |
770 |
810 |
16 |
900 |
960 |
1035 |
16 |
|
|
8,0 |
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/30-1,1/1500/220-380 |
640 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/34-1,5/1500/220-380 |
640 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/38-2,2/1500/220-380 |
715 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/42-3,0/1500/220-380 |
715 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/46-4,0/1500/220-380 |
715 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/22-5,5/1500/220-380 |
830 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/77-7,5/3000/220-380 |
830 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/81-11,0/3000/380-660 |
830 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/85-15,0/3000/380-660 |
1020 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/125-18,5/3000/380-660 |
1020 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/20-8,0-Ex2/IIB-R4Z/8,0/AL/89-22,0/3000/380-660 |
1020 |
800 |
860 |
900 |
16 |
1000 |
1070 |
1135 |
16 |
|
|
9,0 |
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/146-1,5/1500/220-380 |
665 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/150-2,2/1500/220-380 |
740 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/410-3,0/1500/220-380 |
740 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/414-4,0/1500/220-380 |
740 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/158-5,5/1500/220-380 |
855 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/162-7,5/1500/380-660 |
855 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/22-11,0/1500/380-660 |
855 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/401-15,0/3000/380-660 |
1045 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/177-18,5/3000/380-660 |
1045 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/405-22,0/3000/380-660 |
1045 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/20-9,0-Ex2/IIB-R5Z/9,0/AL/185-30,0/3000/380-660 |
1045 |
900 |
960 |
1035 |
16 |
1120 |
1195 |
1255 |
16 |
|
|
10,0 |
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/122-3,0/1500/220-380 |
765 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/126-4,0/1500/220-380 |
765 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/130-5,5/1500/220-380 |
880 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/134-7,5/1500/380-660 |
880 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/142-11,0/1500/380-660 |
880 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/86-15,0/1500/380-660 |
1070 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/90-18,5/1500/380-660 |
1070 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/94-22,0/1500/380-660 |
1070 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/20-10,0-Ex2/IIB-R5Z/10,0/AL/230-30,0/1500/380-660 |
1070 |
1000 |
1070 |
1135 |
16 |
1250 |
1320 |
1385 |
16 |
|
|
11,2 |
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/123-3,0/1000/220-380 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/127-4,0/1000/220-380 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/15-5,5/1000/380-660 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/30-7,5/1500/380-660 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/122-11,0/1500/380-660 |
910 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/126-15,0/1500/380-660 |
1100 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/226-18,5/1500/380-660 |
1100 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/134-22,0/1500/380-660 |
1100 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/230-30,0/1500/380-660 |
1100 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/20-11,2-Ex2/IIB-R5Z/11,2/AL/234-37,0/1500/380-660 |
1230 |
1120 |
1195 |
1255 |
16 |
1400 |
1470 |
1540 |
24 |
|
|
12,5 |
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/55-3,0/1000/220-380 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/59-4,0/1000/220-380 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/63-5,5/1000/380-660 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/67-7,5/1000/380-660 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/02-11,0/1500/380-660 |
942,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/30-15,0/1500/380-660 |
1132,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/06-18,5/1500/380-660 |
1132,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/82-22,0/1500/380-660 |
1132,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/86-30,0/1500/380-660 |
1132,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/14-37,0/1500/380-660 |
1262,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/20-12,5-Ex2/IIB-R5Z/12,5/AL/18-45,0/1500/380-660 |
1262,5 |
1250 |
1320 |
1385 |
16 |
1600 |
1680 |
1740 |
24 |
*Представленные типоразмеры распространяются на исполнения Ех1 и Ех2.
Габаритные и присоединительные размеры вентиляторов РОСА-Ex с типом корпуса 30
|
№ вент. |
Наименование |
L, мм |
D |
D3, мм |
D4, мм |
D5, мм |
n, отв |
|
4,0 |
РОСА-Ex/30-4,0-Ex2/IIB-R3L/4,0/AL/18-0,25/1500/220-380 |
700 |
400 |
500 |
536 |
560 |
12 |
|
РОСА-Ex/30-4,0-Ex2/IIB-R3L/4,0/AL/22-0,37/1500/220-380 |
700 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/30-4,0-Ex2/IIB-R3L/4,0/AL/73-0,55/3000/220-380 |
700 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/30-4,0-Ex2/IIB-R3L/4,0/AL/77-0,75/3000/220-380 |
700 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/30-4,0-Ex2/IIB-R3L/4,0/AL/81-1,1/3000/220-380 |
700 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/30-4,0-Ex2/IIB-R3L/4,0/AL/13-1,5/3000/220-380 |
700 |
400 |
500 |
536 |
560 |
12 |
|
|
РОСА-Ex/30-4,0-Ex2/IIB-R3L/4,0/AL/17-2,2/3000/220-380 |
700 |
400 |
500 |
536 |
560 |
12 |
|
|
4,5 |
РОСА-Ex/30-4,5-Ex2/IIB-R3L/4,5/AL/46-0,25/1500/220-380 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
РОСА-Ex/30-4,5-Ex2/IIB-R3L/4,5/AL/18-0,37/1500/220-380 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/30-4,5-Ex2/IIB-R3L/4,5/AL/70-0,55/1500/220-380 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/30-4,5-Ex2/IIB-R3L/4,5/AL/73-0,75/3000/220-380 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/30-4,5-Ex2/IIB-R3L/4,5/AL/77-1,1/3000/220-380 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/30-4,5-Ex2/IIB-R3L/4,5/AL/37-1,5/3000/220-380 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/30-4,5-Ex2/IIB-R3L/4,5/AL/85-2,2/3000/220-380 |
732,5 |
450 |
560 |
620 |
660 |
12 |
|
|
РОСА-Ex/30-4,5-Ex2/IIB-R3L/4,5/AL/61-3,0/3000/220-380 |
807,5 |
450 |
560 |
620 |
660 |
12 |
|
|
5,0 |
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/38-0,25/1500/220-380 |
765 |
500 |
630 |
690 |
730 |
12 |
|
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/14-0,37/1500/220-380 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/18-0,55/1500/220-380 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/25-0,75/3000/220-380 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/73-1,1/3000/220-380 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/77-1,5/3000/220-380 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/81-2,2/3000/220-380 |
765 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/09-3,0/3000/220-380 |
840 |
500 |
630 |
690 |
730 |
12 |
|
|
РОСА-Ex/30-5,0-Ex2/IIB-R3L/5,0/AL/13-4,0/3000/220-380 |
840 |
500 |
630 |
690 |
730 |
12 |
|
|
5,6 |
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/50-0,37/1500/220-380 |
804 |
560 |
710 |
770 |
810 |
16 |
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/58-0,55/1500/220-380 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/62-0,75/1500/220-380 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/25-1,1/3000/220-380 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/73-1,5/3000/220-380 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/77-2,2/3000/220-380 |
804 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/81-3,0/3000/220-380 |
879 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/09-4,0/3000/220-380 |
879 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/13-5,5/3000/220-380 |
879 |
560 |
710 |
770 |
810 |
16 |
|
|
РОСА-Ex/30-5,6-Ex2/IIB-R3L/5,6/AL/17-7,5/3000/220-380 |
994 |
560 |
710 |
770 |
810 |
16 |
|
|
6,3 |
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/78-0,55/1500/220-380 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/82-0,75/1500/220-380 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/86-1,1/1500/220-380 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/90-1,5/1500/220-380 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/97-2,2/3000/220-380 |
849,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/101-3,0/3000/220-380 |
924,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/57-4,0/3000/220-380 |
924,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/317-5,5/3000/220-380 |
924,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/305-7,5/3000/220-380 |
1039,5 |
630 |
800 |
860 |
900 |
16 |
|
|
РОСА-Ex/30-6,3-Ex2/IIB-R4Z/6,3/AL/85-11,0/3000/380-660 |
1039,5 |
630 |
800 |
860 |
900 |
16 |
|
|
7,1 |
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/74-0,75/1500/220-380 |
901,5 |
710 |
900 |
960 |
1035 |
16 |
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/82-1,1/1500/220-380 |
901,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/182-1,5/1500/220-380 |
901,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/90-2,2/1500/220-380 |
976,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/94-3,0/1500/220-380 |
976,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/97-4,0/3000/220-380 |
976,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/101-5,5/3000/220-380 |
976,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/77-7,5/3000/220-380 |
1091,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/81-11,0/3000/380-660 |
1091,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/181-15,0/3000/380-660 |
1281,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
РОСА-Ex/30-7,1-Ex2/IIB-R4Z/7,1/AL/201-18,5/3000/380-660 |
1281,5 |
710 |
900 |
960 |
1035 |
16 |
|
|
8,0 |
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/30-1,1/1500/220-380 |
960 |
800 |
1000 |
1070 |
1135 |
16 |
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/34-1,5/1500/220-380 |
960 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/38-2,2/1500/220-380 |
1023 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/42-3,0/1500/220-380 |
1023 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/46-4,0/1500/220-380 |
1023 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/22-5,5/1500/220-380 |
1155 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/77-7,5/3000/220-380 |
1155 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/81-11,0/3000/380-660 |
1155 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/85-15,0/3000/380-660 |
1288 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/125-18,5/3000/380-660 |
1288 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
РОСА-Ex/30-8,0-Ex2/IIB-R4Z/8,0/AL/89-22,0/3000/380-660 |
1288 |
800 |
1000 |
1070 |
1135 |
16 |
|
|
9,0 |
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/146-1,5/1500/220-380 |
1025 |
900 |
1120 |
1195 |
1255 |
16 |
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/150-2,2/1500/220-380 |
1100 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/410-3,0/1500/220-380 |
1100 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/414-4,0/1500/220-380 |
1100 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/158-5,5/1500/220-380 |
1215 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/162-7,5/1500/380-660 |
1215 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/22-11,0/1500/380-660 |
1215 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/401-15,0/3000/380-660 |
1405 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/177-18,5/3000/380-660 |
1405 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/405-22,0/3000/380-660 |
1405 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
РОСА-Ex/30-9,0-Ex2/IIB-R5Z/9,0/AL/185-30,0/3000/380-660 |
1405 |
900 |
1120 |
1195 |
1255 |
16 |
|
|
10,0 |
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/122-3,0/1500/220-380 |
1165 |
1000 |
1250 |
1320 |
1385 |
16 |
|
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/126-4,0/1500/220-380 |
1165 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/130-5,5/1500/220-380 |
1280 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/134-7,5/1500/380-660 |
1280 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/142-11,0/1500/380-660 |
1280 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/86-15,0/1500/380-660 |
1470 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/90-18,5/1500/380-660 |
1470 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/94-22,0/1500/380-660 |
1470 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
РОСА-Ex/30-10,0-Ex2/IIB-R5Z/10,0/AL/230-30,0/1500/380-660 |
1470 |
1000 |
1250 |
1320 |
1385 |
16 |
|
|
11,2 |
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/123-3,0/1000/220-380 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/127-4,0/1000/220-380 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/15-5,5/1000/380-660 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/30-7,5/1500/380-660 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/122-11,0/1500/380-660 |
1358 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/126-15,0/1500/380-660 |
1548 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/226-18,5/1500/380-660 |
1548 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/134-22,0/1500/380-660 |
1548 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/230-30,0/1500/380-660 |
1548 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
РОСА-Ex/30-11,2-Ex2/IIB-R5Z/11,2/AL/234-37,0/1500/380-660 |
1678 |
1120 |
1400 |
1470 |
1540 |
24 |
|
|
12,5 |
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/55-3,0/1000/220-380 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/59-4,0/1000/220-380 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/63-5,5/1000/380-660 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/67-7,5/1000/380-660 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/02-11,0/1500/380-660 |
1442,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/30-15,0/1500/380-660 |
1632,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/06-18,5/1500/380-660 |
1632,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/82-22,0/1500/380-660 |
1632,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/86-30,0/1500/380-660 |
1632,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/14-37,0/1500/380-660 |
1762,5 |
1250 |
1600 |
1680 |
1740 |
24 |
|
|
РОСА-Ex/30-12,5-Ex2/IIB-R5Z/12,5/AL/18-45,0/1500/380-660 |
1762,5 |
1250 |
1600 |
1680 |
1740 |
24 |
*Представленные типоразмеры распространяются на исполнения Ех1 и Ех2.
Технические
характеристики
|
№ вент. |
Наименование |
N, кВт |
n, об/мин |
Ток, А при 380В |
Масса Ex/10**, кг |
|
|
Ex1 |
Ex2 |
|||||
|
4,0 |
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/18-0,25/1500/220-380 |
0,25 |
1340 |
0,9 |
24,9 |
20,5 |
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/22-0,37/1500/220-380 |
0,37 |
1340 |
1,2 |
24,9 |
20,5 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/73-0,55/3000/220-380 |
0,55 |
2790 |
1,4 |
24,9 |
20,2 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/77-0,75/3000/220-380 |
0,75 |
2790 |
1,8 |
27,4 |
23,2 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/81-1,1/3000/220-380 |
1,1 |
2840 |
2,6 |
27,4 |
23,2 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/13-1,5/3000/220-380 |
1,5 |
2840 |
3,5 |
35,7 |
31,5 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/17-2,2/3000/220-380 |
2,2 |
2855 |
4,9 |
35,7 |
31,9 |
|
|
4,5 |
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/46-0,25/1500/220-380 |
0,25 |
1340 |
0,9 |
25,5 |
20,7 |
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/18-0,37/1500/220-380 |
0,37 |
1340 |
1,2 |
25,8 |
21,5 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/70-0,55/1500/220-380 |
0,55 |
1390 |
1,7 |
29,3 |
25,1 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/73-0,75/3000/220-380 |
0,75 |
2840 |
1,8 |
29 |
24,1 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/77-1,1/3000/220-380 |
1,1 |
2840 |
2,6 |
29 |
24,1 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/37-1,5/3000/220-380 |
1,5 |
2850 |
3,5 |
37 |
32,1 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/85-2,2/3000/220-380 |
2,2 |
2855 |
4,9 |
37,3 |
32,5 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/61-3,0/3000/220-380 |
3,0 |
2860 |
6,4 |
41,5 |
36,4 |
|
|
5,0 |
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/38-0,25/1500/220-380 |
0,25 |
1340 |
0,9 |
26,9 |
20,3 |
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/14-0,37/1500/220-380 |
0,37 |
1340 |
1,2 |
27,9 |
21,2 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/18-0,55/1500/220-380 |
0,55 |
1390 |
1,7 |
30,3 |
24,2 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/25-0,75/3000/220-380 |
0,75 |
2840 |
1,8 |
30 |
23,4 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/73-1,1/3000/220-380 |
1,1 |
2840 |
2,6 |
30,3 |
23,8 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/77-1,5/3000/220-380 |
1,5 |
2850 |
3,5 |
38,5 |
32,1 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/81-2,2/3000/220-380 |
2,2 |
2855 |
4,9 |
38,5 |
32,1 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/09-3,0/3000/220-380 |
3,0 |
2860 |
6,4 |
42,8 |
35,7 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/13-4,0/3000/220-380 |
4,0 |
2880 |
8,2 |
55,2 |
47,9 |
|
|
5,6 |
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/50-0,37/1500/220-380 |
0,37 |
1340 |
1,2 |
30,4 |
24,6 |
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/58-0,55/1500/220-380 |
0,55 |
1390 |
1,7 |
33,5 |
27,6 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/62-0,75/1500/220-380 |
0,75 |
1390 |
2,1 |
33,5 |
27,6 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/25-1,1/3000/220-380 |
1,1 |
2840 |
2,6 |
33,5 |
26,1 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/73-1,5/3000/220-380 |
1,5 |
2850 |
3,5 |
41 |
34,9 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/77-2,2/3000/220-380 |
2,2 |
2855 |
4,9 |
41 |
34,9 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/81-3,0/3000/220-380 |
3,0 |
2860 |
6,4 |
46 |
38,4 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/09-4,0/3000/220-380 |
4,0 |
2880 |
8,2 |
59,1 |
51,2 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/13-5,5/3000/220-380 |
5,5 |
2900 |
11,1 |
59,1 |
51,2 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/17-7,5/3000/220-380 |
7,5 |
2895 |
15,0 |
70,1 |
61,5 |
|
|
6,3 |
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/78-0,55/1500/220-380 |
0,55 |
1390 |
1,7 |
42,3 |
29,7 |
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/82-0,75/1500/220-380 |
0,75 |
1390 |
2,1 |
42,3 |
29,7 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/86-1,1/1500/220-380 |
1,1 |
1390 |
2,9 |
50,1 |
38,1 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/90-1,5/1500/220-380 |
1,5 |
1400 |
3,7 |
51,4 |
38,1 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/97-2,2/3000/220-380 |
2,2 |
2855 |
4,9 |
49,9 |
36,8 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/101-3,0/3000/220-380 |
3,0 |
2860 |
6,4 |
67,6 |
40,5 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/57-4,0/3000/220-380 |
4,0 |
2880 |
8,2 |
68 |
53 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/317-5,5/3000/220-380 |
5,5 |
2900 |
11,1 |
64,3 |
52,9 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/305-7,5/3000/220-380 |
7,5 |
2895 |
15,0 |
81,3 |
64,7 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/85-11,0/3000/380-660 |
11,0 |
2900 |
21,9 |
115,4 |
117,4 |
|
|
7,1 |
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/74-0,75/1500/220-380 |
0,75 |
1390 |
2,1 |
39,1 |
30,9 |
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/82-1,1/1500/220-380 |
1,1 |
1390 |
2,9 |
42,6 |
39,2 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/182-1,5/1500/220-380 |
1,5 |
1400 |
3,7 |
50,4 |
39,2 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/90-2,2/1500/220-380 |
2,2 |
1410 |
5,3 |
53,8 |
43 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/94-3/1500/220-380 |
3,0 |
1410 |
6,8 |
68,5 |
55,3 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/97-4,0/3000/220-380 |
4,0 |
2880 |
8,2 |
68 |
54 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/101-5,5/3000/220-380 |
5,5 |
2900 |
11,1 |
70,6 |
54 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/77-7,5/3000/220-380 |
7,5 |
2895 |
15,0 |
79,3 |
65,9 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/81-11,0/3000/380-660 |
11,0 |
2900 |
21,9 |
128 |
119,3 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/181-15,0/3000/380-660 |
15,0 |
2930 |
30,0 |
171 |
158,9 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/201-18,5/3000/380-660 |
18,5 |
2930 |
35,5 |
181 |
176 |
|
|
8,0 |
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/30-1,1/1500/220-380 |
1,1 |
1390 |
2,9 |
49,6 |
41,1 |
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/34-1,5/1500/220-380 |
1,5 |
1400 |
3,7 |
56,4 |
41,1 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/38-2,2/1500/220-380 |
2,2 |
1410 |
5,3 |
62,8 |
44,9 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/42-3,0/1500/220-380 |
3,0 |
1410 |
6,8 |
75,5 |
57,2 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/46-4,0/1500/220-380 |
4,0 |
1435 |
8,8 |
74,7 |
57,2 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/22-5,5/1500/220-380 |
5,5 |
1440 |
11,7 |
90,1 |
69,5 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/77-7,5/3000/220-380 |
7,5 |
2895 |
15,0 |
89,3 |
68 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/81-11,0/3000/380-660 |
11,0 |
2900 |
21,9 |
145,6 |
121,3 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/85-15,0/3000/380-660 |
15,0 |
2930 |
30,0 |
187 |
161,4 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/125-18,5/3000/380-660 |
18,5 |
2930 |
35,5 |
199 |
178,4 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/89-22,0/3000/380-660 |
22,0 |
2940 |
42,0 |
248 |
222,4 |
|
|
9,0 |
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/146-1,5/1500/220-380 |
1,5 |
1400 |
3,7 |
64,4 |
50,1 |
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/150-2,2/1500/220-380 |
2,2 |
1410 |
5,3 |
72,8 |
54,4 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/410-3,0/1500/220-380 |
3,0 |
1410 |
6,8 |
88,5 |
66,8 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/414-4,0/1500/220-380 |
4,0 |
1435 |
8,5 |
90,7 |
66,9 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/158-5,5/1500/220-380 |
5,5 |
1440 |
11,7 |
99,1 |
78,8 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/162-7,5/1500/380-660 |
7,5 |
1450 |
15,7 |
137 |
118,3 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/22-11,0/1500/380-660 |
11,0 |
1460 |
22,8 |
136 |
142,5 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/401-15,0/3000/380-660 |
15,0 |
2930 |
30,0 |
196 |
172,4 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/177-18,5/3000/380-660 |
18,5 |
2930 |
35,5 |
220,1 |
189,4 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/405-22,0/3000/380-660 |
22,0 |
2940 |
42,0 |
261,3 |
233,3 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/185-30,0/3000/380-660 |
30,0 |
2950 |
56,0 |
374,4 |
328,3 |
|
|
10,0 |
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/122-3,0/1500/220-380 |
3,0 |
1410 |
6,8 |
94,5 |
69,9 |
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/126-4,0/1500/220-380 |
4,0 |
1435 |
8,8 |
94,7 |
69,9 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/130-5,5/1500/220-380 |
5,5 |
1425 |
11,7 |
126,1 |
82,2 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/134-7,5/1500/380-660 |
7,5 |
1450 |
15,7 |
147 |
121,7 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/142-11,0/1500/380-660 |
11,0 |
1460 |
22,8 |
147 |
143,7 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/86-15,0/1500/380-660 |
15,0 |
1460 |
30,0 |
208 |
200,7 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/90-18,5/1500/380-660 |
18,5 |
1470 |
36,3 |
228 |
215,7 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/94-22,0/1500/380-660 |
22,0 |
1470 |
43,2 |
268 |
254,8 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/230-30,0/1500/380-660 |
30,0 |
1470 |
57,6 |
298 |
276 |
|
|
11,2 |
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/123-3,0/1000/220-380 |
3,0 |
960 |
7,6 |
128 |
76,2 |
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/127-4,0/1000/220-380 |
4,0 |
960 |
9,8 |
132 |
81,2 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/15-5,5/1000/380-660 |
5,5 |
960 |
12,5 |
152 |
133,5 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/30-7,5/1500/380-660 |
7,5 |
1450 |
15,7 |
157 |
131,5 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/122-11,0/1500/380-660 |
11,0 |
1460 |
22,8 |
169 |
153,5 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/126-15,0/1500/380-660 |
15,0 |
1460 |
30,0 |
232 |
205,8 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/226-18,5/1500/380-660 |
18,5 |
1470 |
36,3 |
252 |
220,5 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/134-22,0/1500/380-660 |
22,0 |
1470 |
43,2 |
282 |
259,5 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/230-30,0/1500/380-660 |
30,0 |
1470 |
57,6 |
310 |
280,7 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/234-37,0/1500/380-660 |
37,0 |
1475 |
70,2 |
395 |
368,4 |
|
|
12,5 |
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/55-3,0/1000/220-380 |
3,0 |
960 |
7,6 |
132,4 |
85,4 |
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/59-4,0/1000/220-380 |
4,0 |
960 |
9,8 |
131,7 |
90,4 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/63-5,5/1000/380-660 |
5,5 |
960 |
12,9 |
158 |
143 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/67-7,5/1000/380-660 |
7,5 |
970 |
17,2 |
178 |
141 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/02-11,0/1500/380-660 |
11,0 |
1460 |
22,8 |
196 |
162,9 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/30-15,0/1500/380-660 |
15,0 |
1460 |
30,0 |
236 |
216 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/06-18,5/1500/380-660 |
18,5 |
1470 |
36,3 |
270 |
232,8 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/82-22,0/1500/380-660 |
22,0 |
1470 |
43,2 |
302,4 |
272 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/86-30,0/1500/380-660 |
30,0 |
1470 |
57,6 |
314 |
293,2 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/14-37,0/1500/380-660 |
37,0 |
1475 |
70,2 |
399 |
377,2 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/18-45,0/1500/380-660 |
45,0 |
1475 |
86,0 |
427 |
411,2 |
|
*Представленные
характеристики распространяются на исполнения Ex1/Ex2, IIB/IIC.
**Масса РОСА-Ex/20 и РОСА-Ex/30 в исполнениях Ex1 и Ex2 уточняется по запросу.
Шумовые характеристики
|
№ вент. |
Наименование |
Уровень звуковой мощности, дБ в октавных полосах частот, Гц |
Общий, дБа |
|||||||
|
63 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
|||
|
4,0 |
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/18-0,25/1500/220-380 |
73 |
70 |
68 |
64 |
64 |
63 |
62 |
54 |
77 |
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/22-0,37/1500/220-380 |
73 |
70 |
68 |
64 |
66 |
64 |
63 |
56 |
76 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/73-0,55/3000/220-380 |
86 |
85 |
91 |
93 |
92 |
87 |
85 |
79 |
98 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/77-0,75/3000/220-380 |
88 |
84 |
83 |
83 |
84 |
81 |
82 |
75 |
93 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/81-1,1/3000/220-380 |
91 |
87 |
86 |
83 |
82 |
80 |
80 |
74 |
94 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/13-1,5/3000/220-380 |
91 |
87 |
86 |
83 |
82 |
80 |
80 |
74 |
95 |
|
|
РОСА-Ex/10-4,0-Ex2/IIB-R3L/4,0/AL/17-2,2/3000/220-380 |
90 |
87 |
85 |
81 |
81 |
80 |
79 |
71 |
93 |
|
|
4,5 |
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/46-0,25/1500/220-380 |
76 |
73 |
71 |
68 |
69 |
67 |
67 |
62 |
80 |
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/18-0,37/1500/220-380 |
77 |
74 |
72 |
68 |
68 |
67 |
65 |
57 |
80 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/70-0,55/1500/220-380 |
77 |
74 |
72 |
69 |
69 |
68 |
67 |
59 |
81 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/73-0,75/3000/220-380 |
86 |
87 |
93 |
95 |
92 |
86 |
85 |
79 |
99 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/77-1,1/3000/220-380 |
90 |
86 |
85 |
85 |
86 |
83 |
84 |
77 |
95 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/37-1,5/3000/220-380 |
89 |
86 |
84 |
80 |
80 |
80 |
80 |
72 |
93 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/85-2,2/3000/220-380 |
91 |
88 |
86 |
82 |
82 |
82 |
82 |
74 |
94 |
|
|
РОСА-Ex/10-4,5-Ex2/IIB-R3L/4,5/AL/61-3,0/3000/220-380 |
93 |
90 |
88 |
87 |
88 |
87 |
84 |
75 |
97 |
|
|
5,0 |
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/38-0,25/1500/220-380 |
75 |
72 |
70 |
66 |
66 |
66 |
66 |
58 |
78 |
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/14-0,37/1500/220-380 |
77 |
74 |
72 |
70 |
70 |
69 |
67 |
58 |
81 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/18-0,55/1500/220-380 |
79 |
76 |
74 |
70 |
70 |
69 |
67 |
59 |
82 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/25-0,75/3000/220-380 |
85 |
86 |
92 |
94 |
91 |
85 |
84 |
78 |
99 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/73-1,1/3000/220-380 |
88 |
88 |
93 |
96 |
95 |
89 |
88 |
82 |
101 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/77-1,5/3000/220-380 |
92 |
88 |
87 |
87 |
88 |
85 |
86 |
79 |
97 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/81-2,2/3000/220-380 |
93 |
90 |
88 |
85 |
85 |
84 |
85 |
78 |
97 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/09-3,0/3000/220-380 |
96 |
93 |
92 |
91 |
91 |
87 |
85 |
77 |
101 |
|
|
РОСА-Ex/10-5,0-Ex2/IIB-R3L/5,0/AL/13-4,0/3000/220-380 |
94 |
91 |
89 |
87 |
87 |
86 |
84 |
75 |
98 |
|
|
5,6 |
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/50-0,37/1500/220-380 |
75 |
86 |
84 |
85 |
82 |
77 |
75 |
69 |
91 |
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/58-0,55/1500/220-380 |
79 |
81 |
85 |
82 |
82 |
78 |
75 |
67 |
90 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/62-0,75/1500/220-380 |
82 |
79 |
77 |
76 |
77 |
76 |
73 |
64 |
86 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/25-1,1/3000/220-380 |
87 |
88 |
94 |
96 |
93 |
87 |
86 |
80 |
100 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/73-1,5/3000/220-380 |
90 |
89 |
95 |
97 |
96 |
91 |
89 |
83 |
102 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/77-2,2/3000/220-380 |
94 |
90 |
89 |
89 |
90 |
87 |
88 |
81 |
99 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/81-3,0/3000/220-380 |
94 |
91 |
89 |
86 |
86 |
85 |
86 |
79 |
98 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/09-4,0/3000/220-380 |
98 |
95 |
94 |
93 |
93 |
89 |
87 |
79 |
102 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/13-5,5/3000/220-380 |
96 |
93 |
91 |
89 |
89 |
88 |
86 |
77 |
100 |
|
|
РОСА-Ex/10-5,6-Ex2/IIB-R3L/5,6/AL/17-7,5/3000/220-380 |
98 |
95 |
93 |
89 |
89 |
88 |
86 |
78 |
101 |
|
|
6,3 |
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/78-0,55/1500/220-380 |
74 |
75 |
73 |
75 |
76 |
74 |
76 |
69 |
83 |
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/82-0,75/1500/220-380 |
77 |
75 |
73 |
73 |
72 |
73 |
75 |
69 |
83 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/86-1,1/1500/220-380 |
81 |
76 |
76 |
75 |
74 |
75 |
76 |
69 |
85 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/90-1,5/1500/220-380 |
82 |
79 |
77 |
76 |
76 |
75 |
76 |
69 |
87 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/97-2,2/3000/220-380 |
90 |
86 |
85 |
84 |
86 |
85 |
88 |
82 |
96 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/101-3,0/3000/220-380 |
90 |
87 |
85 |
85 |
84 |
83 |
87 |
82 |
95 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/57-4,0/3000/220-380 |
100 |
97 |
95 |
94 |
96 |
93 |
93 |
88 |
104 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/317-5,5/3000/220-380 |
93 |
88 |
88 |
88 |
87 |
87 |
88 |
84 |
98 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/305-7,5/3000/220-380 |
100 |
98 |
99 |
98 |
99 |
96 |
95 |
87 |
107 |
|
|
РОСА-Ex/10-6,3-Ex2/IIB-R4Z/6,3/AL/85-11,0/3000/380-660 |
97 |
92 |
92 |
91 |
90 |
91 |
92 |
85 |
101 |
|
|
7,1 |
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/74-0,75/1500/220-380 |
80 |
83 |
89 |
90 |
87 |
81 |
79 |
71 |
94 |
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/82-1,1/1500/220-380 |
78 |
78 |
76 |
78 |
77 |
77 |
80 |
73 |
87 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/182-1,5/1500/220-380 |
80 |
81 |
79 |
79 |
77 |
77 |
79 |
73 |
88 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/90-2,2/1500/220-380 |
84 |
82 |
81 |
79 |
78 |
79 |
80 |
76 |
90 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/94-3/1500/220-380 |
87 |
82 |
83 |
82 |
80 |
81 |
82 |
77 |
91 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/97-4,0/3000/220-380 |
95 |
91 |
95 |
100 |
99 |
94 |
93 |
87 |
105 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/101-5,5/3000/220-380 |
93 |
90 |
88 |
89 |
88 |
87 |
91 |
88 |
99 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/77-7,5/3000/220-380 |
96 |
99 |
99 |
103 |
101 |
98 |
97 |
91 |
108 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/81-11,0/3000/380-660 |
94 |
94 |
92 |
94 |
93 |
93 |
96 |
89 |
103 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/181-15,0/3000/380-660 |
96 |
97 |
95 |
95 |
93 |
93 |
95 |
89 |
104 |
|
|
РОСА-Ex/10-7,1-Ex2/IIB-R4Z/7,1/AL/201-18,5/3000/380-660 |
100 |
98 |
97 |
95 |
93 |
94 |
96 |
90 |
105 |
|
|
8,0 |
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/30-1,1/1500/220-380 |
85 |
92 |
93 |
95 |
93 |
87 |
86 |
82 |
100 |
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/34-1,5/1500/220-380 |
89 |
87 |
87 |
88 |
89 |
86 |
85 |
78 |
96 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/38-2,2/1500/220-380 |
92 |
89 |
88 |
85 |
86 |
84 |
84 |
74 |
96 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/42-3,0/1500/220-380 |
91 |
88 |
86 |
83 |
83 |
82 |
82 |
73 |
95 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/46-4,0/1500/220-380 |
91 |
88 |
86 |
83 |
83 |
82 |
81 |
74 |
95 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/22-5,5/1500/220-380 |
93 |
90 |
88 |
86 |
86 |
85 |
83 |
75 |
97 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/77-7,5/3000/220-380 |
99 |
102 |
106 |
109 |
106 |
100 |
98 |
92 |
113 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/81-11,0/3000/380-660 |
103 |
100 |
105 |
108 |
107 |
102 |
100 |
94 |
113 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/85-15,0/3000/380-660 |
100 |
99 |
101 |
101 |
101 |
99 |
100 |
93 |
109 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/125-18,5/3000/380-660 |
104 |
100 |
101 |
100 |
99 |
98 |
99 |
92 |
109 |
|
|
РОСА-Ex/10-8,0-Ex2/IIB-R4Z/8,0/AL/89-22,0/3000/380-660 |
106 |
100 |
101 |
98 |
96 |
96 |
98 |
91 |
110 |
|
|
9,0 |
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/146-1,5/1500/220-380 |
86 |
90 |
92 |
96 |
96 |
89 |
86 |
81 |
101 |
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/150-2,2/1500/220-380 |
92 |
89 |
88 |
88 |
89 |
87 |
87 |
80 |
98 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/410-3,0/1500/220-380 |
91 |
88 |
86 |
85 |
85 |
84 |
85 |
78 |
95 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/414-4,0/1500/220-380 |
90 |
87 |
85 |
83 |
82 |
81 |
82 |
75 |
94 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/158-5,5/1500/220-380 |
92 |
89 |
87 |
85 |
85 |
83 |
84 |
77 |
96 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/162-7,5/1500/380-660 |
93 |
90 |
88 |
88 |
86 |
86 |
86 |
80 |
97 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/22-11,0/1500/380-660 |
95 |
92 |
90 |
89 |
88 |
88 |
87 |
79 |
99 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/401-15,0/3000/380-660 |
104 |
102 |
100 |
99 |
98 |
96 |
98 |
95 |
109 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/177-18,5/3000/380-660 |
104 |
101 |
99 |
98 |
96 |
94 |
97 |
94 |
109 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/405-22,0/3000/380-660 |
106 |
103 |
101 |
99 |
97 |
96 |
98 |
95 |
110 |
|
|
РОСА-Ex/10-9,0-Ex2/IIB-R5Z/9,0/AL/185-30,0/3000/380-660 |
108 |
105 |
103 |
101 |
99 |
99 |
100 |
96 |
112 |
|
|
10,0 |
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/122-3,0/1500/220-380 |
89 |
96 |
99 |
99 |
96 |
90 |
89 |
84 |
104 |
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/126-4,0/1500/220-380 |
91 |
94 |
94 |
93 |
94 |
90 |
91 |
84 |
101 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/130-5,5/1500/220-380 |
91 |
94 |
95 |
92 |
92 |
89 |
90 |
82 |
101 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/134-7,5/1500/380-660 |
97 |
96 |
95 |
91 |
90 |
88 |
90 |
83 |
102 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/142-11,0/1500/380-660 |
100 |
97 |
95 |
91 |
90 |
89 |
89 |
82 |
104 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/86-15,0/1500/380-660 |
98 |
95 |
93 |
90 |
91 |
91 |
87 |
79 |
102 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/90-18,5/1500/380-660 |
99 |
96 |
94 |
90 |
91 |
90 |
87 |
80 |
103 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/94-22,0/1500/380-660 |
100 |
97 |
95 |
91 |
91 |
90 |
88 |
81 |
104 |
|
|
РОСА-Ex/10-10,0-Ex2/IIB-R5Z/10,0/AL/230-30,0/1500/380-660 |
101 |
98 |
96 |
92 |
93 |
91 |
88 |
82 |
105 |
|
|
11,2 |
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/123-3,0/1000/220-380 |
89 |
90 |
88 |
87 |
87 |
85 |
82 |
73 |
96 |
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/127-4,0/1000/220-380 |
93 |
91 |
89 |
87 |
87 |
85 |
81 |
73 |
97 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/15-5,5/1000/380-660 |
91 |
88 |
86 |
84 |
84 |
84 |
80 |
72 |
95 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/30-7,5/1500/380-660 |
99 |
96 |
94 |
95 |
95 |
93 |
91 |
81 |
104 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/122-11,0/1500/380-660 |
98 |
99 |
97 |
96 |
96 |
94 |
91 |
82 |
105 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/126-15,0/1500/380-660 |
102 |
100 |
98 |
96 |
96 |
94 |
90 |
82 |
106 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/226-18,5/1500/380-660 |
99 |
100 |
102 |
107 |
99 |
96 |
93 |
90 |
110 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/134-22,0/1500/380-660 |
100 |
101 |
103 |
108 |
100 |
97 |
94 |
91 |
111 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/230-30,0/1500/380-660 |
101 |
102 |
104 |
109 |
101 |
98 |
95 |
92 |
112 |
|
|
РОСА-Ex/10-11,2-Ex2/IIB-R5Z/11,2/AL/234-37,0/1500/380-660 |
102 |
103 |
105 |
110 |
102 |
99 |
96 |
93 |
113 |
|
|
12,5 |
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/55-3,0/1000/220-380 |
90 |
86 |
85 |
83 |
84 |
83 |
81 |
72 |
94 |
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/59-4,0/1000/220-380 |
88 |
85 |
83 |
81 |
81 |
81 |
79 |
71 |
92 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/63-5,5/1000/380-660 |
90 |
87 |
85 |
83 |
83 |
83 |
80 |
73 |
94 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/67-7,5/1000/380-660 |
93 |
90 |
88 |
85 |
85 |
84 |
83 |
75 |
96 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/02-11,0/1500/380-660 |
94 |
95 |
97 |
102 |
94 |
91 |
88 |
85 |
105 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/30-15,0/1500/380-660 |
102 |
99 |
97 |
96 |
97 |
95 |
91 |
82 |
106 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/06-18,5/1500/380-660 |
98 |
99 |
101 |
106 |
98 |
95 |
92 |
89 |
109 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/82-22,0/1500/380-660 |
100 |
101 |
103 |
108 |
100 |
97 |
94 |
91 |
110 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/86-30,0/1500/380-660 |
101 |
102 |
104 |
109 |
101 |
98 |
95 |
92 |
112 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/14-37,0/1500/380-660 |
102 |
103 |
105 |
110 |
102 |
99 |
96 |
93 |
113 |
|
|
РОСА-Ex/10-12,5-Ex2/IIB-R5Z/12,5/AL/18-45,0/1500/380-660 |
104 |
105 |
107 |
112 |
104 |
101 |
98 |
95 |
115 |
|
Электрические схемы подключения вентиляторов в сеть 380 В
Не представленные в наличии модели доступны к поставке под заказ
Оповестить о поступлении
Всю необходимую информацию также можно получить по телефону «горячей линии»
+ 7 800 200 93 96или по телефону
+7 800 505 08 67 получить консультацию
